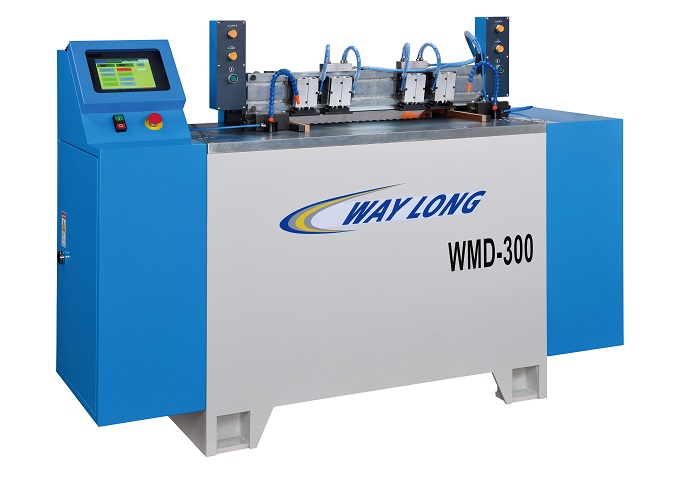

WMD-300 NC HIGH SPEED DOVETAILER - Suitable for flat panel
Share :

WMD-300

Properties and Construction :

1.Employs high precision servo motor combined with Mitsubishi 2-axis controllor for high speed, high precision positioning control.
2.The machine is equipped with a human-machine interfacing control panel, providing maximum convenience for setting size, shape and position It also reduces setting time and saves wood material waste during cutting test .
3.High rigidity ,high speed spindle stock provides maximum speed up to 24,000RPM, assuring extra fine surface of cut and superior tightness of dovetail jointing.
4.Employs high precision linear motion guides combined with precision ball screws for extremely smooth motions and fast machining.
5.The machine provides maximum width of cut up to 600mm. Machining speed is 2.5 times higher than that of a conventional machine. Machine operation only requires a single operator. The WMD-300 is a profitable performer, featuring high accuracy and high precision.

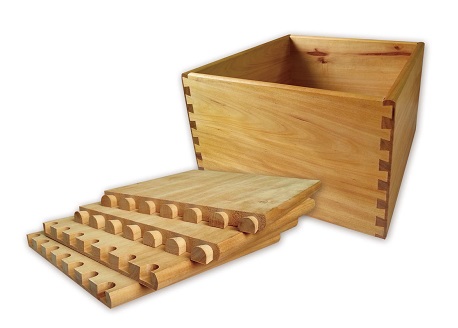

Example 1

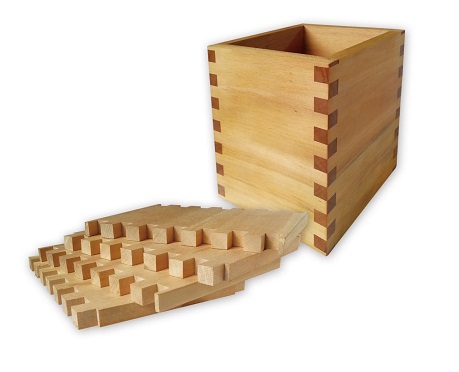

Example 2
WMD-300 working video-1
WMD-300 working video-2
Specification
型式 WMD-300
Machine Size(L x W x H) 1750 x 760 x 1270 mm
Control system SYNTEC PC
X-axis servo motor 400W
Y-axis servo motor 400W
Spindle motor 3KW(5HP)
Spindle speed 20000RPM
Maximum working width 600mm
Maximum working thickness 18mm
Dust hood outlet 3" x 1
N.W. 800kgs
G.W. 950kgs
Packing Size(L x W x H) 1850 x 900 x 1400 mm
