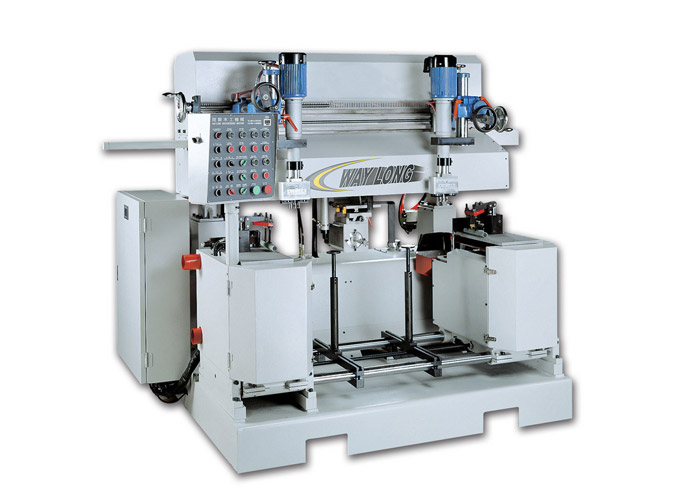

WMD-110C DRAWER FRONT PANEL FORMING MACHINE - Suitable for flat and curve panel
Share :

WMD-110C

Properties and Construction :

1. Suitable for plate and curved surface
2. Employs high precision servo motor combined with 3-axis controller for high speed , highprecision positioning control.
3. The machine is equipped with a human-machine interfacing conerol panel , providing maximum convenience for setting size, shape and position.
4. The individual drill upholder could prevent breakdown from the bottom after drilled .
5. The saw used with server motor and sensor , could apply camber faceplate to do more efficiency mechanics cutting.

Specification
型式 WMD-110C
Servo motor 400w*3
Spindle motor 2HP*3
Drill motor 1HP*2
Oil pressure motor 2HP*1
Spindle speed 15000RPM
N.W. 2500kgs
G.W. 2900kgs
Machine Size 2450*1580*1880mm
Packing size 2550*1680*2230mm
