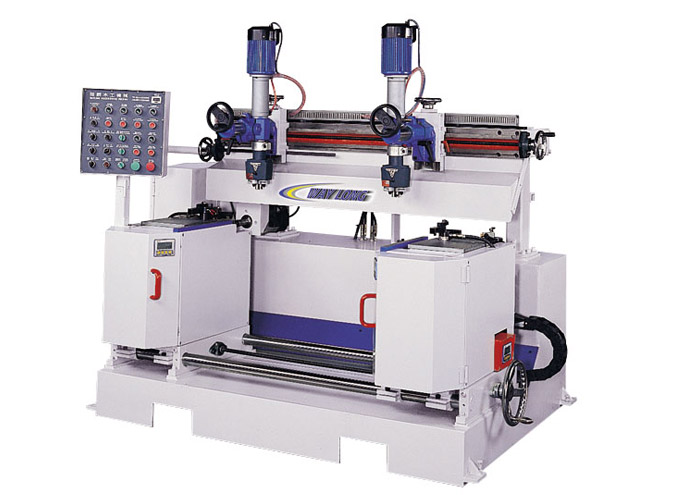

WMD-110 DRAWER FRONT PANEL FORMING MACHINE - Suitable for flat panel
Share :

WMD-110

Properties and Construction :

1.interated with mortise cutting ,slotting and drilling to improve production efficiency upto 300%
2.Logically designed and quick adjust ment within 15 minutes.
3.High speed and powerful spindle with linear motion quide make smooth cutting finish.
4.Central control panel applications make each processes more independently and easily.

4 steps complete at only one operation

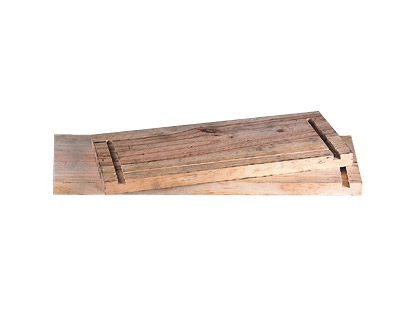

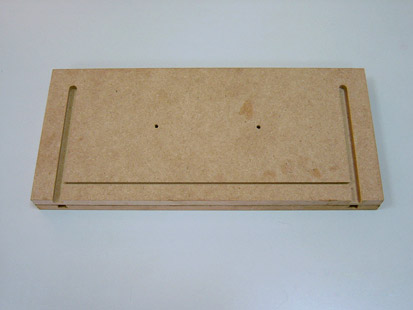

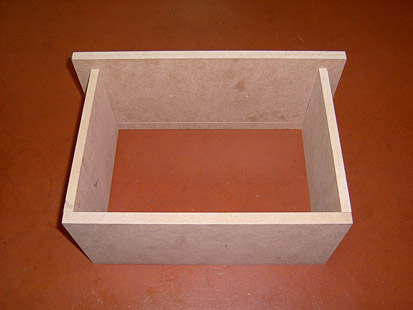

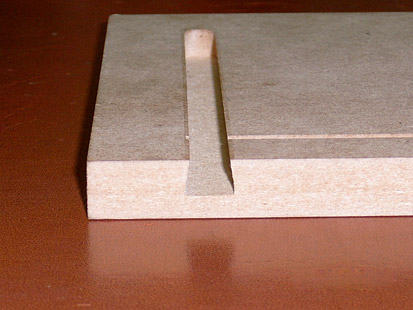

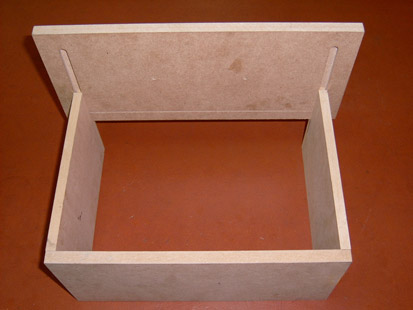

Example 1
Example 2
Example 3
Example 4
Specification
型式 WMD-110
Servo motor 400W*2
Spindle motor 2HP*3
Drill motor 1HP*2
Oil pressure motor 2HP*1
Spindle speed 15000RPM
N.W. 2000kgs
G.W. 2300kgs
Machine Size(L x W x H) 2450 x 1580 x 1750 mm
Packing size (L x W x H) 2550 x 1680 x 2100 mm
